Infrared Receiver

An infrared receiver, or IR receiver, is hardware that sends information from an infrared remote control to another device by receiving and decoding signals.

Infrared Receiver process

By controlling the spacing between the transmitted modulated signals, the waveform can be read by an input pin on a microcontroller and decoded as a serial bit stream.

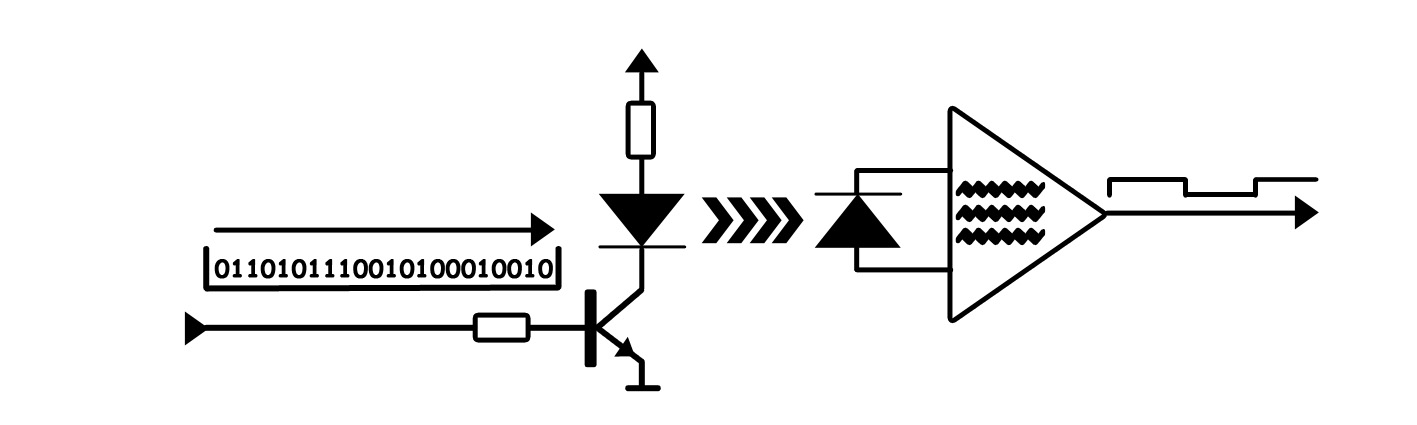

The send and receive process of TOYO IR product

(reference only)

TOYO Infrared Receiver Application

Base on the below condition:
1. Operating Temperature, -40ºC to +85ºC
2. Storage Temperature Range -40ºC to +100ºC

TOYO Infrared Receiver Application

1 – Electrical appliances , Air conditioning, Electric fan, TV
2 – Electronics parts , PCB
3 – Indoor, outdoor large scale room warming, heating system
4 – Production machineries , Clothes manufacturing
