Product Description

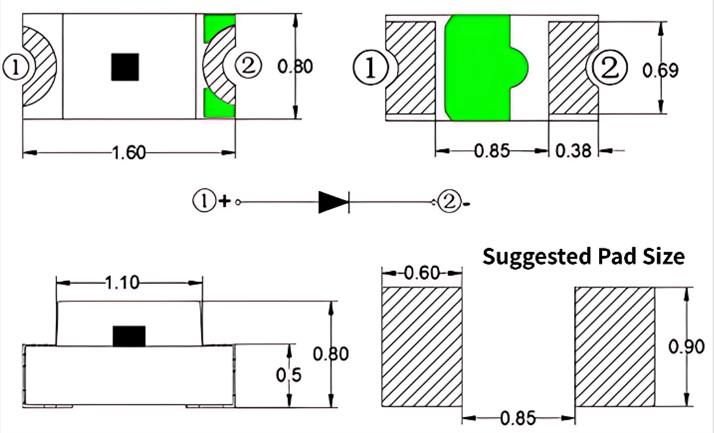

| Dimensions(mm) | 3D Image |
 |
 |
| Product | Size
(L*W*Hmm) |
Color | λd(nm)/
CCT(K)/ CIE(X,Y) |
Vf(V) | IV(mcd) | Viewing Angle 2θ1/2 (deg) |
IF
(mA) |
||
| Min | Max | Min | Max | ||||||
| TY-X0603UR1(0.80)-A | 1.6*0.8*0.8 | Red | 618-640 | 1.7 | 2.2 | 7.2 | 280 | 120° | 5 |
| TY-X0603PG1(0.80)-A | 1.6*0.8*0.8 | Green | 512-525 | 2.7 | 3.5 | 28.5 | 450 | 5 | |
| TY-X0603BL1(0.80)-A | 1.6*0.8*0.8 | Blue | 460-470 | 2.7 | 3.5 | 180 | 450 | 5 | |
| TY-X0603UA1(0.80)-A | 1.6*0.8*0.8 | Orange | 600-610 | 1.7 | 2.2 | 40 | 355 | 5 | |
| TY-X0603UY1(0.80)-A | 1.6*0.8*0.8 | Yellow | 580-595 | 1.7 | 2.2 | 40 | 355 | 5 | |
| TY-X0603UG1(0.80)-A | 1.6*0.8*0.8 | Yellow Green | 565-575 | 1.7 | 2.2 | 11.5 | 90 | 5 | |
| TY-X0603NW1(0.80)-A | 1.6*0.8*0.8 | Natural White | 4000-4500 | 2.5 | 3.5 | 160 | 300 | 5 | |
| TY-X0603WW1(0.80)-A | 1.6*0.8*0.8 | Warm White | 2700-3500 | 2.7 | 3.2 | 160 | 300 | 5 | |
| TY-X0603PW1(0.80)-A | 1.6*0.8*0.8 | Pure white | 5000-6500 | 2.7 | 3.0 | 270 | 410 | 5 | |
| TY-X0603CW1(0.80)-A | 1.6*0.8*0.8 | Cool White | 6500-9000 | 2.7 | 3.0 | 200 | 600 | 5 | |
| TY-X0603CW2(0.80)-A | 1.6*0.8*0.8 | Cool White | 9000-25000 | 2.7 | 3.0 | 200 | 800 | 5 | |
| TY-X0603CW3(0.80)-A | 1.6*0.8*0.8 | Cool White | 100000 | 2.7 | 3.0 | 200 | 800 | 5 | |
